Work
Reconnected
concert for instrumental machines


WestArt Magazin


Workshop für Jugendliche zum Reconnected Konzert

Link:
>> 3D-tour: Sound-Space-concert. UNESCO-Welterbe Zollverein, Essen

Description

Like Christof Schläger, all you have to do is stroll through everyday life with your ears open and suddenly you are captivated by sounds and noises that others pay no particular attention to. It is during these moments of acoustic amazement and surprise that sound artist Schläger's ears "click". His imagination immediately begins to formulate plans as to how he could use his expertise as a trained (construction) engineer to harness these sounds for one of his giant sound machines. As in the case of his "M-Pipes", a sound sculpture with 16 rain gutter downpipes: "On a very stormy day, I noticed how the pole of a street sign produced a sound. The strong wind blew over the pipe that was open at the top. For the M-Pipes, I investigated the phenomenon of air sidestream. Specially built nozzles, which blow at the opening at a special angle, produce a rough sound. It is more reminiscent of a transverse flute or sometimes even a deeply bowed cello. It's the same basic principle as the organ pipe, but the design is very different." But the story of how the "Drum Gate" came about, in which 16 "air drums" form a walk-in "drum gate" with a diameter of four meters, also speaks for Schläger's creative spirit of discovery: "A deafening parcel sorting system used compressed air swivel arms to sort the parcels. Rattling sorting arms constantly boxed and hissed the parcels in different directions on the conveyor belts. A peculiar percussion concert filled the hall." And the "drum gate" was invented.

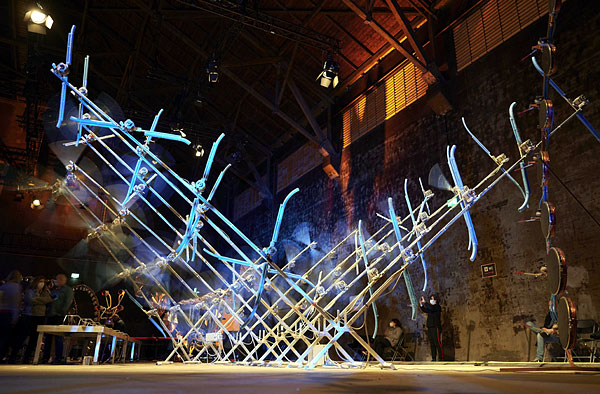

NOW-festival 2021, UNESCO-Welterbe Zollverein, Essen

Schläger's universe of sound machines now includes over 50 such unique pieces with corresponding fantasy names. These include the "Federine" as well as the "Whupi", the "Telewald" or "Standzeit". They are all based on acoustic phenomena that originate from an urban microcosm, pneumatic pumps, bells, tubes, hoses or doorbells. And Schläger transfers these sounds into the macrocosm of playable instrument sculptures with his sophisticated constructions, making them aesthetically tangible.
He is concerned with the immediacy of sensual perception. This is the central point around which his entire artistic activity revolves. In his opinion, this immediacy can only be maintained if nothing separates the listener from the sound production. Then the "magic" of the pure experience is preserved. In his view, we do not perceive music with the mind, but with the self, the holistic psyche.

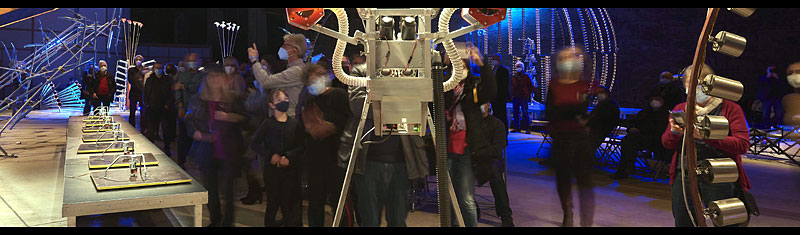

So the audience should and must be surrounded by the instruments and is at the center of the action in the true sense of the word. This is precisely the experience offered by the spatial sound concert "Reconnected", which appeals directly to our senses. The composer and musician works as a freelance artist in Herne and Amstelveen. He has created over a period of 30 years, these instruments, which consist of a multitude of magnetic, electrified apparatuses, valves, motors and so on. The scores for this orchestra are played on a keyboard and a computer. The audience can move freely through this futuristic jungle of machines and step through the "drum gate", for example, and then, to borrow a word from John Cage, there is really only one thing to wish for: Happy New Ears and Eyes!
(Text: Guido Fischer)

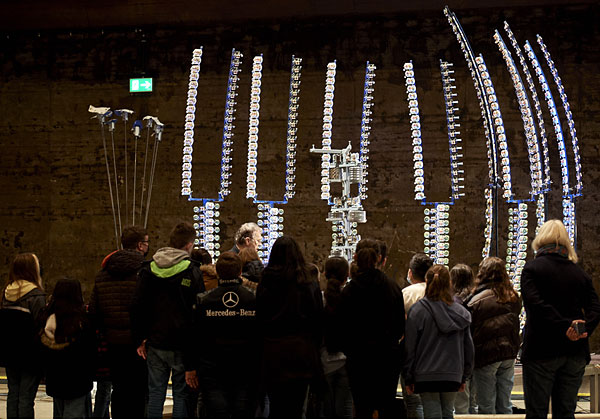

soundmachine 'Telewald'


soundmachine 'V-riller'


Soundmachines



more info

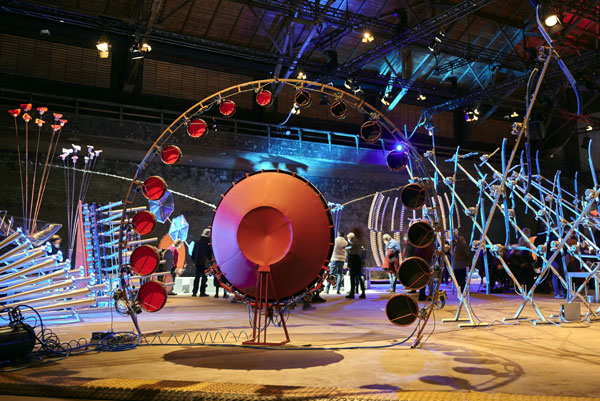

Drum-Gate (2016)
PDF

...

Material: steel, rubber membranes, valve block
Weight: ?
Dimensions: length 400cm [13.1 ft] x height 350cm [=11.5 ft]




more info

Hammerwerk (2014)
PDF

Hammerwerk consists of four air drums woth eight pneumatically powered hammers for which the stretched membranes of kevlar -a synthetic fiber of high tensile strength- over a circular mounting with an internal diameter of 1.50 meters. Attached to each drum are sixteen hammers each of which are fitted with a pneumatically operated rotational joint the heads of which covered with various materials, strike the membrane. The flaming orange color of the membranes with their small insectile hammer arms gives Hammerwork, especially when in movement, the appearance of a delicate, organic being.

Material: steel sheets, pneumatic swivel drives, valve islands, control
Weight: 55 kg
Dimensions: height 220cm [=7.2 ft] x width 150cm [=4.9 ft]




more info

Kulong (2009)
PDF

32 Typewriter magnets strike custom-made oval metal cylinders. There are two versions: One tuned B gate consisted of a Typedrum to F#, one tuned G to D.

Material: 32 magnets, steel
Weight: 50 kg
Dimensions: height 300cm [=9.8 ft] x length 380cm [=12.5 ft] x width 80cm [=2.6 ft]




more info

Typedrum (2009)
PDF

The clattering backdrop of electric daisy wheel typewriters has become an acoustic museum’s rarity. This particular sound environment was revived here. For Typedrum small level arms strike membranes of print foil mounted on round tires.

Material: 16 magnets, metal, foil
Weight: 40 kg
Dimensions: height 300cm [=9.8 ft] x length 380cm [=12.5 ft] x width 80cm [=2.6 ft]




more info

Brauser (2004)
PDF

Motors are mounted on perforated synthetic foil stretched over eight three-meter-plus high poles. When the motors are activated they cause the foil to rapidly rotate which generates a robust, clamorous sound. The eight poles stand on a carrier and the foil, which is red, makes them appear like long-stemmed plants in a vase.

Material: steel rods, 8 motors, foils
Weight: 20 kg
Dimensions: length 160cm [5.2 ft] x height 330cm [=10.8 ft]




more info

Chromix (2001)
PDF

The mechanical principle: Magnetic generators let V2-A metal sheets resonate. Chromix exists in four executions. Sound is produced by means of magnets that stimulate the steel sheets’ intrinsic resonances. The metallic sound produced varies between made by a transformer and that made by a thunder sheet.

Material: 32 magnets, stainless steel-chrome sheets, metal
Weight: 60 kg
Dimensions: length 760cm [=24.6 ft] x height 330cm [=10.8 ft]




more info

Schwirrer (2000)
PDF

Schwirrer, built in 2000, is based on a principle similar to that of an organ or flute in which a column of air is caused to vibrate when air is forced into a tube. The parallel fluting within the tube generates standing waves of air similar to the aquatic action in a small brook where extending from the banks crosswise overlapping waves are formed on the surface of the water.

Material: steel, cable conduits and pipe bends, 8 sewing machine motors
Weight: each instrument 80 kg
Dimensions: height 350cm [=11.5 ft] x length 700cm [=23.0 ft]




more info

Telewald (1999 / 2013)
PDF

72 telephone bells have been mounted on a slightly concave carrier of 3.10 meters in height and are struck by magnets. In addition to these standard telephone bells, the artist also uses prepared bells in the form of flat metal discs, which produce a rattling sound.

Material: steel profiles, 576 bells
Weight: each object 15 kg
Dimensions: height 310cm [=10.2 ft] x length 45cm [=1.5 ft]




more info

Whupi (1998)
PDF

Metal membranes in small metal boxes are vibrated. On the arms, which can have a span of up to 16 meters [=52.5 ft], sound moves up through the space.

Material: 64 boxes, steel pipe, metal sheets, flexible tubes
Weight: 60 kg
Dimensions: length 1600cm [=52.5 ft] x height 40cm [=13.1 ft]




more info

Knackdosen (1993)
PDF

Connected by a cable electromagnetic signal generators are mounted at intervals of 0.5 meters. Close-circuited, they generate a cracking sound. The 32 meter long cable of the Crackboxes chain can be arranged in various ways. Schläger places the chain either inconspicuously in the room or he constructs with them objects on carriers.

Material: transducer, signal source, cable
Weight: 15 kg
Dimensions: length 3200cm [=105 ft]




more info

Sirenen (1989)
PDF

Air passing through rapidly rotating perforated discs produces a characteristic siren sound. The siren consists of eight discs, which can be triggered by eight throttle flaps and 16 motors. Wind machine blowing air into the valve box. The valves distribute the air to the eight hoses.

Material: steel, tubes, 8 hoses, 8 valves, 8 throttles, 16 motors
Weight: 140 kg
Dimensions: height 240cm [=7.9 ft] x width 350cm [=11.5 ft]




more info

Wopper (1996 / 2013)
PDF

Roaring deep Wopp sounds are generated through sudden interruption of the air stream. The last version of the Wopper emerged uite late in 2014.

Material: 8 valves, steel, synthetic water pipe or conical led pipe
Weight: 25 kg
Dimensions: length 300cm [=9.8 ft] x height 140cm [=4.6 ft]




more info

Klöpper (2014)
PDF

...

Material:
Weight: 110 kg
Dimensions: width 150cm [=4.9 ft] x height 200cm [= 6.6 ft]




more info

Sirenen (1989)
PDF

Air passing through rapidly rotating perforated discs produces a characteristic siren sound. The siren consists of eight discs, which can be triggered by eight throttle flaps and 16 motors. Wind machine blowing air into the valve box. The valves distribute the air to the eight hoses.

Material: steel, tubes, 8 hoses, 8 valves, 8 throttles, 16 motors
Weight: 140 kg
Dimensions: height 240cm [=7.9 ft] x width 350cm [=11.5 ft]




mehr info

Quart (2019)
PDF

Schnelle Bewegungen von gelochten Scheiben erzeugen Töne wenn Luft hindurchströhmt.Vom Quart existieren zwei Instrumente, Quart Weiss und Quart Rot. Sie sind technisch gleich aufgebaut unterscheiden sich aber in der Klangfarbe durch anders gestimmte Lochscheiben.

Materialien: Stahl, Rohre, Schläuche, 4 Ventile, 4 Drosselklappen, 4 Motoren
Gewicht: 60 kg
Abmessungen: 250cm (Höhe) x 110cm (Breite)




more info

Motorchord (2012)
PDF

...

Material: steel, motors
Weight:
Dimensions: height 80cm [=2.6 ft] x width 400cm [=13.1 ft]




more info

Hopper (1993)
PDF

Hammerwerk consists of four air drums woth eight pneumatically powered hammers for which the stretched membranes of kevlar -a synthetic fiber of high tensile strength- over a circular mounting with an internal diameter of 1.5 meter. Attached to each drum are sixteen hammers each of which are fitted with a pneumatically operated rotational joint the heads of which covered with various materials, strike the membrane.

Material: steel sheets, pneumatic swivel drives, valve islands, control
Weight: 55 kg
Dimensions: height 220cm [=7.2 ft] x weight 150cm [=4.9 ft]
